Microfinishing & Polishing Film

Grit range from 0.5μm to 100μm

Slurry and electrostatic coatings

Diamond, silicon carbide & aluminium oxide

Roll, sheet, disc & belt form

PSA and anti-slip backing

Scalloped edge film

Maximum 14-day delivery

manufacturing partner

Description

Applications

Technical Data

Case Studies

Downloads

Product Description

Improving your surface finish

In partnership with Precision Polishing, we supply products in the microfinishing, polishing and lapping sector. Product material includes diamond, aluminium oxide and silicon carbide all available in both slurry and electrostatic coatings. The grit range is from 0.5μm to 100μm. This range of products is predominately supplied to cylinder manufacturers, automotive and aerospace customers. Workpieces include cylinders (various materials and applications e.g. rotogravure/print), crankshafts, camshafts, pistons and hydraulic parts.

The material can be supplied in various forms including rolls, sheets, belts and discs. Various backing options are available e.g. thickness, anti-slip and PSA.

For detailed information please click on the application, technical, case studies and download tabs.

Samples are available on request.

FA35 series microfinishing (electrostatic aluminium oxide)

Features:

Full range of aluminium oxide grits.
Strong backing film (75 microns) resistant to both water and oil.
Can be utilised with CNC automated machinery.
Non-slip coating on the backside of the film.

Applications/workpiece materials:

Metal and rubber cylinders.
Cam and crank shafts.
Metallurgy.
Several finishing processes.

Grit availability:

9, 15, 20, 30, 40 and 60 Micron.

Forms:

Rolls in 100mm or 200mm width with 76.2mm 4 keyed plastic core.
Sheets 230mm x 280mm.
Discs 203mm, 254mm, 305mm and 350mm.
Scalloped edge available for tape form.
Other forms are available on request.

FA50 series microfinishing (electrostatic aluminium oxide)

Features:

Full range of aluminium oxide grits.
Strong backing film (125 microns) resistant to both water and oil.
Can be utilised with CNC automated machinery.
Non-slip coating on the backside of the film.

Applications/workpiece materials:

Metal and rubber cylinders.
Cam and crank shafts.
Metallurgy.
Several finishing processes.

Grit availability:

5, 9, 12, 15, 20, 30, 40, 50, 60, 80 and 100 Micron.

Forms:

Rolls in 100mm or 200mm width with 76.2mm 4 keyed plastic core.
Sheets 230mm x 280mm.
Discs 203mm, 254mm, 305mm and 350mm.
Scalloped edge available for tape form.
Other forms are available on request.

FS50 series microfinishing (electrostatic silicon carbide)

Features:

Full range of silicon carbide grits.
Strong backing film (125 microns) resistant to both water and oil.
Can be utilised with CNC automated machinery.
Non-slip coating on the backside of the film.

Applications/workpiece materials:

Metal and rubber cylinders.
Cam and crank shafts.
Metallurgy.
Several finishing processes.

Grit availability:

9, 15, 20, 30, 40 and 60 Micron.

Forms:

Rolls in 100mm or 200mm width with 4 keyed plastic core.
Sheets 230mm x 280mm.
Discs 203mm, 254mm, 305mm and 350mm.
Scalloped edge available for tape form.

Other forms are available on request.

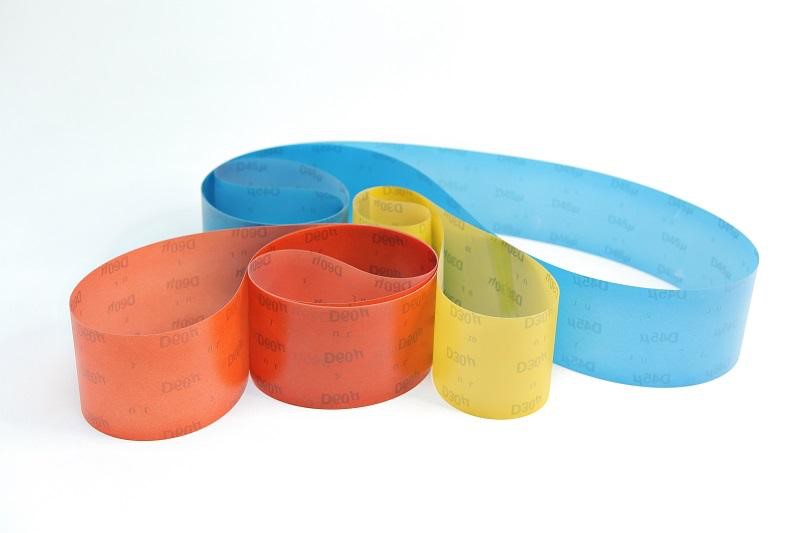

FD55 series microfinishing (electrostatic diamond)

Features:

Full range of diamond grits.
Strong backing film (125 microns) resistant to both water and oil.
Can be utilised with CNC automated machinery.
Non-slip coating on the backside of the film.
Due to the sharp diamond structure and strong resin bond FD55 gives a fast and aggressive cutting power, high product strength and durability.
Can reduce time cycles and abrasive consumption.
Colour coded to ensure correct quality is used for the process.

Applications/workpiece materials:

Carbides and ceramics.
Sintered metals, super alloys and cast materials.
Glass, stone and gemstones.
Composite materials.
Grinding and superfinishing processes of hard materials, various workpiece geometries.

Grit availability:

15 (Green), 30 (Yellow), 45 (Blue), 60 (Red) and 80 (Cream) Micron.

Forms:

Rolls in 100mm or 200mm width with 76.2mm 4 keyed plastic core.
Sheets with or without PSA backing 230mm x 280mm.
Discs with or without PSA backing 150mm, 200mm, 250mm and 300mm.
Endless belts manufactured on request.
Other forms are available on request.

FA30 series polishing (slurry coated aluminium oxide)

Features:

Full range of aluminium oxide grits.
Versatile and flexible backing (75 microns) resistant to both water and oil.
Can be utilised with CNC automated machinery.

Applications/workpiece materials:

Metals, composites, plastics and rubber materials.
Fibre optics and connectors.
Metallurgy.
Several finishing processes.

Grit availability:

0.5, 1, 2, 3, 5, 9, 12, 16, 20, 30, 40 and 60 Micron.

Forms:

Rolls in 100mm or 200mm width with 76.2mm 4 keyed plastic core.
Sheets 230mm x 280mm.
Discs 127mm, 203mm, 254mm 305mm and 350mm.
Other forms are available on request.

FS30 series polishing (slurry coated silicon carbide)

Features:

Full range of silicon carbide grits.
Versatile and flexible backing (75 microns) resistant to both water and oil.
Can be utilised with CNC automated machinery.

Applications/workpiece materials:

Metals, composites, plastics and rubber materials.
Fibre optics and connectors.
Metallurgy.
Several finishing processes.

Grit availability:

1, 3, 5, 9, 16, 20, 30, and 40 Micron.

Forms:

Rolls in 100mm or 200mm width with 76.2mm 4 keyed plastic core.
Sheets 230mm x 280mm.
Discs 127mm, 203mm, 254mm 305mm and 350mm.
Other forms are available on request.

FD30 series polishing (slurry coated diamond)

Features:

Full range of diamond grits.
Versatile and flexible backing (75 microns) resistant to both water and oil.
Can be utilised with CNC automated machinery.

Applications/workpiece materials:

Metals, composites, plastics and rubber materials.
Fibre optics and connectors.
Metallurgy.
Several finishing processes.

Grit availability:

0.5, 1, 3, 5, 9, 16, 30, 45, 60 and 80 Micron.

Forms:

Rolls in 100mm or 200mm widths with 76.2mm 4 keyed plastic core.
Sheets 230mm x 280mm.
Discs 127mm, 203mm, 254mm 305mm and 350mm.
Other forms are available on request.

Superfinishing attachments for lathes and grinding machines

Various types of attachments/machines. Single head and double head attachments available with various options. Machines start at approx £14,000.00, with a delivery of approx. 4 weeks. Spare parts stocked in Germany with a quick delivery service. Ex-display/demo machines available on request.
